Lexus LF-A Roadster Concept, 2008

Lexus LF-A Roadster Concept, 2008

The LF-A Roadster is based on the sturdy yet lightweight carbon-fiber and aluminum body used for the LF-A coupe, which helps maintain the structure's strength and rigidity even without a top.

The LF-A Roadster is powered by a high-revving V10 engine that approaches 5.0 liters in displacement. The V10, capable of more than 500 horsepower and test-track speeds greater than 200 mph, is mounted in front of the passenger compartment but behind the front-axle centerline in what the LF-A's engineers refer to as a "front-mid" configuration.
The engine is connected via a torque tube and propeller shaft to a transaxle that is controlled by paddle shifters. The torque tube is a structural member that adds rigidity to the drivetrain and chassis while also reducing vibration.

Styling is rooted in the Lexus L-Finesse design philosophy, conferring the LF-A Roadster's front end with a compact, low-profile, aerodynamic shape. Like its coupe counterpart, the LF-A Roadster stands just 48 inches tall, but the Roadster configuration adds a speed adaptive rear wing.

These grilles vent the heated air from the car's two rear-mounted radiators into the LF-A Roadster's aerodynamic wake. The radiators are fed cool air by two large intake ducts mounted just above the rear wheel wells. This aft radiator positioning not only allowed the designers to keep the car's front profile low and tight but also aided the LF-A's chassis engineers in their search for optimal weight distribution.

The front tires are 265/35R20s, while the rears are 305/30R20s. Like the LF-A coupe, the brakes consist of 14.2-inch cross-drilled, vented discs up front, and 13.6-inch cross-drilled, vented discs at the rear. The front brake calipers are six-piston units and the rear calipers use four pistons each.

Hummer H1 Alpha Concept, 2001

Hummer H1 Alpha Concept, 2001



The Hummer H1 is a civilian vehicle based on the High Mobility Multipurpose Wheeled Vehicle (HMMWV), popularly known as the Humvee, which was created by AM General.

History

Originally released in the civilian market in 1992, the Hummer H1 owes its birth to the popularity of photos from Operation Desert Storm and the enthusiastic campaign from actor Arnold Schwarzenegger, who personally owns several variants of Hummer vehicles. GM announced that 2006 would be the last model year for the Hummer H1 with production winding down in June 2006, due to a new emission laws for Diesel engine vehicles which take effect in 2007. No version of the Hummer H1 ever produced would meet these new standards. AM General currently has orders for an excess of 50,000 new HMMWVs to be produced between 2006-2009 for the United States Military. AM General will continue to produce the H1, just not the Alpha. These vehicles will be sold through Fleet sales. The next H1 will most-likely bear a refined version of the prior 6.5L Turbo Diesel engine, but that has not been confirmed. Selling the H1's through fleet sales will allow the AM General to not be subjected to the new emission rules and regulations. AM General has sufficient fleet orders to produce 600-800 units per year right now.

Specifications

The Hummer H1 has three common variants: a convertible-like soft top, a four-door hard top pickup truck and a Wagon body version. Other less known variants include a two-door pickup truck and a four-door slantback. The convertible/soft top and the station wagon versions are the only ones available in the mass market. The 2 door and 4 door pickup versions are only available in fleet livery.

5 engine types and three automatic transmission types can be found in Hummer H1s. The common engine/transmission combinations are:

• 6.2 L Detroit Diesel V8/GM TH400/3L80 3-speed
• 6.5 L Detroit Diesel V8/GM 4L80-E 4-speed
• 5.7 L Vortec 5700 gasoline V8 TBI/GM 4L80-E 4-speed
• 6.5 L turbo Detroit Diesel V8/GM 4L80-E 4-speed
• 6.6 L Duramax LLY turbo Diesel/Allison 1000 5-speed (model year 2006)

The Hummer H1 shares some common driveline parts with its HMMWV brethren. Items like brakes, differentials, frame and major body panels (hood, tailgate and quarter panels) are identical between the HMMWV and the Hummer H1. All Hummer H1s and HMMWVs come off the same first stage assembly line, and then are separated midway to either become a military HMMWV or a civilian H1.

Hummer H1s are unique in the way they handle off road. They are inherently very stable, thanks to their wide stance. They also can ford 30 inches (76 cm) of water, climb a 22-inch (56 cm) step, have a stock ground clearance of 16 inches (41 cm) (thanks to its design of tucking driveline components inside a channel, which subsequently intrudes into the cabin space of the vehicle), have approach/departure angles of 72/37.5 degrees and most H1s are equipped with Central Tire Inflation System (CTIS), which enables the driver to increase or decrease the tire air pressure at will.

Hummer H1s have many unusual features. They use inboard brakes. They have geared hubs, allowing the drivetrain's half shafts to be up high for greater clearance. The radiator is up high, sloping back over the engine. Rather than using simple runflat tires, aluminum or rubber inserts are an optional feature for runflat ability. A central tire inflation system is available as an option. Chemical warfare resistant paint is available only on the military version.

Price
Price is projected to be around US$129,399 for the open-top, and US$140,796 for the wagon.

Dacia Logan, 2009

Dacia Logan, 2009

New Dacia Logan introduced across the majority of Western European markets from July 2008. In most cases, its entry level price remains unchanged, making it a more appealing proposition than ever.

More contemporary looks
New Dacia Logan stands out as a modern saloon with more contemporary exterior lines which reflect its robust, quality build. The grille, which first appeared on Dacia Sandero, is bigger and features the brand's new logo, plus a chrome upper trim as standard (except entry level version). The new front bumper is flush with the bodywork for a more integrated, harmonious feel, while the headlights are bigger and the fog lamps come with elegant carbon colour surrounds (depending on version).

The rear design of New Dacia Logan has been updated, too. The design of the new boot lid, which can be trimmed with a lower chrome strip, is more streamlined and its lines have been carried over to the revised rear lights. The rear bumper, too, is now flush with the bodywork and incorporates reflectors and a towing hook complete with concealing cap.

An even more pleasing interior
New Dacia Logan sets out to be even more appealing than ever. The new dashboard, which first appeared on Dacia Sandero, is modern and functional, while the design of the door panels also contributes to the cabin's modern feel thanks to their more practical pull handles and elegant trimming (depending on version). The upgrade in range has seen the introduction of two finishes for New Dacia Logan's dashboard, plus a choice of four upholsteries (depending on countries).

Drivers will appreciate the practical controls, and special care has gone into ensuring that all dashboard information is easy to read. The driving environment itself has been made even more comfortable and driverfriendly thanks to a new driver's seat adjustment control (depending on version) and a height-adjustable steering column (depending on version). Rear visibility has been improved through the fitment of a comma-type central rear headrest and large format door mirrors. These have been carried over from Dacia Logan MCV and are standard equipment on New Dacia Logan.

An exceptionally roomy interior
New Dacia Logan's generous dimensions ensure outstanding cabin space which continues to be unmatched in the three-volume saloon category of the B-Entry segment. Indeed, its size is more akin to C-segment norms, since the newcomer's overall length has been increased to 4,290mm (up 40mm compared with the previous version Logan), while its width is 1,740mm. Cabin space is one of New Dacia Logan's most salient features and three tall passengers (more than 1.90m in height) can be accommodated comfortably in the rear thanks to rear headroom of 873mm. Rear shoulder room is a remarkable 1,428mm too, a figure more readily associated with larger saloons. Last but by no means least, the boot volume of 510 litres is unequalled by any of New Dacia Logan's rivals in its category and the boot layout itself permits loads of very different shapes and sizes to be carried with ease.

The accent on safety
New Dacia Logan features the same safety features and equipment that enabled the model to achieve a threestar Euro NCAP crash test rating.

New Dacia Logan can be equipped with the latest generation Bosch 8.1 ABS complete with electronic brakeforce distribution (EBD) and emergency brake assist (EBA), a new feature which debuted on Dacia Sandero. The latter detects when the driver brakes in an emergency situation and acts on the hydraulic circuit to increase the effectiveness of the ABS by applying maximum pressure the instant the driver hits the brakes.

Front and rear tracks of New Dacia Logan have been widened 7mm either side, which reinforces the roadholding capabilities of the vehicle.

New Dacia Logan features a new honeycomb structure for the dashboard which reduces the severity of impact to the knees. In addition to the materials it employs, the dashboard's very design takes safety into account thanks to the curves of its lower section which match the form of the tibia, enabling impact loads to be spread out evenly in case of contact. The driver and front passenger also benefit from further lower limb protection thanks to underfoot padding.

All New Dacia Logan's seats are equipped with three-point seatbelts and headrests, while the new car is delivered as standard with two controlled-deflation airbags (depending on countries), driver and front passenger, the pressure of which diminishes following deployment in order to limit the load applied to occupants.

A comprehensive range of proven powerplants
New Dacia Logan comes with the same proven petrol engines and diesel engine that have contributed to the Dacia range's success.

The 1.4 MPI 75hp, 1.6 MPI 90hp and 1.6 16V 105hp all comply with the criteria of cost, robustness and ease of maintenance that are a feature of the Dacia brand. They combine generous torque from low revs with thrifty fuel consumption: 7.0, 7.2 and 7.1 litres/100km respectively.

The 1.5 dCi stands out as a benchmark in the diesel engine field thanks to the use of such advanced technologies as second-generation common-rail direct injection which delivers both high performance and extremely low fuel consumption. The 1.5 dCi is available in 70hp form and a punchier 85hp version, while CO2 emissions of 120g/km point to the 1.5 dCi 70hp and 1.5 dCi 85hp engines' ecological credentials.

Citroen C4 Picasso, 2007

Citroen C4 Picasso, 2007

The 5 seat C4 Picasso slips naturally into Citroën's compact MPV range between the established, best-selling Xsara Picasso and the award-winning seven seat version, which will now be known as the Grand C4 Picasso. With three compact MPVs and the full-size C8 people carrier, Citroën now boasts the broadest MPV range in its history.

The new 5 seat C4 Picasso benefits from the same forward thinking that shaped the design of the recently launched Grand C4 Picasso, with outstanding all-round visibility, a light and airy interior, leading cabin and boot space, incorporating a new version of Citroën's Modubox folding trolley, and the use of high quality materials. The easy-to-use and flexible interior lay-out combines with the uncluttered interior space and the highest levels of comfort to ensure that travelling is a pleasurable experience.

The interior of Citroën's newcomer is refreshingly light, with outstanding visibility provided by the huge windscreen, slim pillars and optional panoramic sunroof. Artificial lighting also plays a major role with the availability of various useful features, such as automatic welcome lights under the door mirrors, a portable torch in the boot and reading lights on the back of the front seats, all designed to make journeys easier.

The exterior dimensions (4.47m long, 1.83m wide and 1.66m tall) give the C4 Picasso an extremely spacious interior. This feeling of space is enjoyed by all passengers, with those in the front benefiting from the simple, uncluttered design of the dash, and those in the back from three individual, full-size seats and a flat floor. The innovative seating design, first seen in the Grand C4 Picasso, allows the rear seats to be quickly and easily folded flat into the floor.

When all 5 seats are in use, the new model leads the class with 500 litres of boot space underneath the luggage cover, extending to a maximum 1,734 litres once the rear seats are folded down. Helping to keep the boot tidy, the five seat C4 Picasso can also be equipped with a new version of Citroën's renowned Modubox. This innovative, removable trolley makes it easy to divide boot space and to transport objects outside of the vehicle.

The new 5 seat C4 Picasso provides a relaxing journey for all occupants. Suspension comfort can be further enhanced by the optional pneumatic rear suspension, while laminated acoustic side windows can be specified to make it even quieter inside. An automatic electronic parking brake and Hill Start Assist are fitted as standard and make everyday driving easier.

Thoughtful extras such as individual air flow controls for back seat passengers, an air quality sensor and a scented air freshener can all add to the pleasant on board atmosphere. A high quality stereo system and folding video screens in the back of the front seats are also available to keep passengers entertained.

Which scored five stars in Euro NCAP tests, the new C4 Picasso meets the most stringent criteria for occupant protection, offering the likes of four Isofix seats, audible seat belt warnings for all seats and seven airbags as standard.

Acura RDX Prototype, 2006

Acura RDX Prototype, 2006

Combining sport utility with sports sedan handling and performance, RDX features an innovative 2.3-liter four-cylinder turbocharged engine, Acura's exclusive Super Handling All-Wheel Drive(TM) (SH-AWD(TM)), and is designed to redefine the entry premium SUV segment. This near-production prototype provides an advance preview of the all-new RDX that will go on sale this summer.

The RDX features an all-new 2.3-liter i-VTEC(R) four-cylinder turbocharged engine that generates 240 horsepower and 260 lbs-ft of torque. This is the first application of forced induction technology in Acura history. The revolutionary i-VTEC Turbo technology uses a variable flow turbocharger, which is exclusive to the RDX, and provides dramatic performance benefits while maintaining excellent fuel efficiency. To complement the all-aluminum high-performance engine, the RDX utilizes Acura's steering wheel-mounted paddle shifters to manually operate the 5-speed sequential SportShift(TM) automatic transmission.

The Acura's Super Handling-AWD system is tuned specifically for the new RDX platform. SH-AWD's sophisticated electronic controls automatically distribute torque fore and aft, as well as splitting the rear torque left to right. The result is dramatically enhanced handling, traction and stability during sporty driving as well as in inclement weather. A sophisticated chassis with fully independent front and rear suspension complement the SH-AWD. Vehicle Stability Assist (VSA(R)) combines with large disc brakes and ABS to enhance control.
Acura RDX Prototype

The RDX is built on an all-new global light truck platform. Reflecting Acura's commitment to safety through innovation, the RDX is equipped with the Advanced Compatibility Engineering(TM) (ACE(TM)) body structure and additional state-of-the-art safety features. The ACE structure helps to disperse collision forces over a larger frontal area. The system also helps to provide enhanced protection for vehicle occupants while at the same time increasing compatibility with other vehicles in a frontal collision. Front, side and side curtain airbags, in addition to rollover sensors add an extra measure of safety.

The chiseled exterior styling combines with a generous greenhouse to provide excellent visibility for driving in city traffic or on twisty mountain roads. RDX employs a compact upper body with an aggressively raked belt line, sporty wheel flares and a substantial hood that flows down from the windshield to an aggressive Acura signature five-sided grill. Custom 19-inch alloy wheels give the RDX Prototype an aggressive stance. Dual exhaust tips, HID headlights, and a rear spoiler add to the sporty appearance of the vehicle.

The inside, the RDX combines richly appointed materials with a sporty, driver-oriented cockpit. The center console features an innovative storage system, which allows for hidden and lockable storage of a briefcase or laptop computer. The prototype's interior features an assortment of leading-edge technologies, such as the Acura Navigation System with Voice Recognition(TM), AcuraLink(TM) satellite communication system with real time traffic and HandsFreeLink(TM) wireless telephone interface. A premium Acura/ELS(TM) DVD-Audio system is tuned to deliver rich surround sound to the cabin.

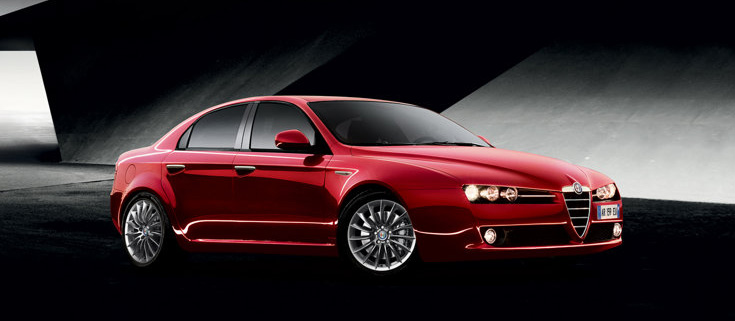

Alfa Romeo 159, 2009

Alfa Romeo 159, 2009

The Alfa Romeo 159 is an exclusive sedan combining refined Italian style with the "elegant sportiness" of Alfa Romeo. The Alfa Romeo 159 Sportwagon on the other hand combines the style, performance and handling of a genuine sports car with the flexibility of use and luggage space versatility of a prestigious station wagon.

The versions exhibited two new Euro 5 compliant engines which available from the beginning of April: the 1.75 liter 200 HP TBi engine and the 2.0 liter 170 HP JTDM engine. In detail, the Alfa Romeo 159 is fitted with the new 1.75 liter TBi engine (Euro 5) - maximum output 200 HP from 4750 to 5500 rpm and maximum torque of 320 Nm at 1400 rpm - giving it a maximum speed of 235 km/h and acceleration of 0 to 100 km/h in barely 7.7 seconds.

The powerful Alfa Romeo 159 sedan is offered in the TI sporting version, featuring lowered geometry, bigger tires, 19 inch alloy rims, miniskirts and large aluminum brakes with red calipers. So, a very determined-looking car with a decidedly "ground-hugging" look.
Inside, the TI environment is recognizable from the shaped sports seats in perforated leather with the Alfa Romeo logo stitched in red, plus the steering wheel with sports grip and the gear knob covered in leather with red stitching.

The internal coverings are black and the insignia are in "brushed dark aluminum". The same impression of sportiness appears in the instrument panel graphics, the pedals and the aluminum scuff plate with TI logo. Finally, this particular version comes with high-end equipment including triple-zone climate control, VDC system with Electronic Q2, Blue&Me Nav GPS and entertainment system, Bose Hi-Fi system and Cruise Control.

The public can admire an Alfa Romeo 159 Sportwagon equipped with the new 2.0 liter 170 HP JTDM engine (Euro 5). With this engine, the car can reach 216 km/h and takes 9 seconds to accelerate from 0 to 100 km/h.

Inside,
The eye is caught by the sports steering wheel with radio commands, the gear knob covered in leather with black stitching and the new sports seats covered in leather. Giving a further impression of sportiness, the head lining, the parcel shelf and the pillar fairings are black, while the badges are in "brushed aluminum" and the instrument panel employs "sporty" graphics.
The equipment (standard and optional) on this car is very high-spec: triple-zone climate control, Cruise Control, VDC system (with Electronic Q2), Bose Hi-Fi system, GPS system (with telephone and voice commands), and Visibility Pack (rain, mist and twilight sensors).

Bugatti EB 164 Veyron, 2004

Bugatti EB 164 Veyron, 2004

Bugatti Veyron 16.4

The Bugatti Veyron 16.4 is the most powerful, most expensive, and fastest street-legal production car in the world, with a proven top speed of over 400 km/h (407 km/h or 253 mph). It reached full production in September 2005. The car is built by Volkswagen AG subsidiary Bugatti Automobiles SAS and is sold under the legendary Bugatti marque. It is named after racing driver Pierre Veyron, who won the 24 hours of Le Mans in 1939 while racing for the original Bugatti firm.

History

Development of the vehicle began with the 1999 EB 18/3 "Veyron" concept car. Introduced at the Tokyo Motor Show, it was similar in design and appearance to the final Veyron production car. One major difference was the EB 18/3's use of a W18 engine with three banks of six cylinders. The Veyron was designed by Hartmut Warkuss of Volkswagen rather than Giorgetto Giugiaro of ItalDesign who had handled the three prior Bugatti concepts.

In the case of the Veyron, it will be several years before Volkswagen will be able to see if their investment in developing ground-breaking technology has paid off. One key measure is how much (if any) of the technology developed for the Veyron finds use in mass-produced cars.
The first personally owned Veyron was debuted in front of Hotel De Paris in Monte Carlo during the 2005 Grand Prix.

Specifications

The Veyron features a W16 engine—16 cylinders in 4 banks of 4 cylinders, or the equivalent of two narrow-angle V8 engines mated in a vee configuration. Each cylinder has 4 valves, for a total of 64, but the narrow V8 configuration allows two camshafts to drive two banks of cylinders so only 4 camshafts are needed. The engine is fed by four turbochargers, and it displaces 8.0 L (7,993 cc/488 in³) with a square 86 by 86 mm bore and stroke.

Putting this power to the ground is a dual-clutch DSG computer-controlled manual transmission with 7 gear ratios via shifter paddles behind the steering wheel boasting an 8 ms shift time. The Veyron can be driven by full automatic transmission. The Veyron also features full-time all-wheel drive developed by Haldex helping to transfer power to the road. It uses special Michelin run-flat tires designed specifically for the Veyron to accommodate the vehicle's top speed.
The car's wheelbase is 2700 mm (106.3 in). Overall length is 4466 mm (175.8 in). It measures 1998 mm (78.7 in) wide and 1206 mm (47.5 in) tall.
Curb weight is estimated at 4,160 lb (1890 kg). This gives the car a power to weight ratio of 529 bhp/tonne.

Performance
According to Volkswagen, the final production Veyron engine produces between 1020 and 1040 metric hp (1006 to 1026 SAE net hp), so the car will be advertised as producing "1001 horsepower" in both the US and European markets. This makes it the most powerful production road-car engine in history. Torque is 1250 N·m (922 ft·lbf).

Top speed was initially promised to be 252 mph (406 km/h), but test versions were unstable at that speed, forcing a redesign of the aerodynamics. In May 2005, a prototype Veyron tested at a Volkswagen track near Wolfsburg, Germany, and recorded an electronically limited top speed of 400 km/h (249 mph). In October, 2005, Car and Driver magazine's editor Csaba Csere test drove the final production version of the Veyron for the November 2005 issue. This test, at Volkswagen's Ehra-Lessien test track, reached a top speed of 253 mph (407 km/h).

The Veyron is the quickest production car to reach 100 km/h (62 mph) with an estimated time of 2.5 seconds. It also reaches 200 and 300 km/h (124 and 186 mph) in 7.3 and 16.7 seconds respectively. It should also be noted that the Veyron's 0-200 mph (0-322 km/h)time is quicker than the McLaren F1's 120-200 mph (193-322 km/h) time. This makes the Veyron the quickest-accelerating production vehicle in history. It also consumes more fuel than any other production car, using 40.4 L/100 km (4.82 mpg) in city driving and 24.1 L/100 km (10 mpg) in combined cycle. At full-throttle, it uses more than 125 L/100 km (2.1 mpg)—at full throttle, the Veyron would empty its 100 L fuel tank in just 12.5 minutes. The car's everyday top speed is listed at 234 mph (377 km/h). When the car reaches 137 mph (220 km/h), hydraulics lower the car until it has a ground clearance of about 3 1/2 inches (8.9 cm). At the same time, the wing and spoiler deploy. This is the "handling" mode, in which the wing helps provide 770 pounds (3425 newtons) of downforce, holding the car to the road. The driver must, using the key, toggle the lock to the left of his seat in order to use the maximum speed of 253 miles per hour (407 km/h). Theoretically it can go faster but it is electronically limited to 253 miles per hour (407 km/h) to prevent tire damage. The key functions only when the vehicle is at a stop when a checklist then establishes whether the car—and its driver—are ready to enable 'top speed' mode. If all systems are go, the rear spoiler retracts, the front air diffusers close and the ground clearance, normally 4.9 inches (12.4 cm), drops to 2.6 inches (6.6 cm).

The Veyron uses unique cross-drilled and turbine vented carbon rotors for braking that draw in cooling air. Each caliper has eight titanium pistons. Bugatti claims maximum deceleration of 1.3 g on road tires. Prototypes have been subjected to repeated 1.0 g braking from 194 to 50 mph (312 to 80 km/h) without fade. With the car's fearsome acceleration from 50 to 194 mph (80 to 312 km/h), that test can be performed every 22 seconds. At speeds above 124 mph (200 km/h), the rear wing also acts as an airbrake, snapping to a 70-degree angle in 0.4 seconds once brakes are applied, providing up to 0.6 g (6 m/s²) of deceleration. Bugatti claims the Veyron will brake from 252 mph (406 km/h) to a standstill in less than 10 seconds. The braking is also so evenly applied that the car will not deviate from a straight path if the driver lets go of the steering wheel, even with the brakes fully applied starting from close to top speed.

Lamborghini Gallardo LP560-4, 2009

Lamborghini Gallardo LP560-4, 2009

The new Gallardo LP560-4, Lamborghini once again sets a higher standard for super sports cars. With its new engine, permanent four-wheel drive transmission and new suspension, it delivers clearly improved performance and dynamics. In parallel, its innovative design takes the classic lines unique to the Lamborghini brand one step further. Powerful elegance has never been so defined before.

The Lamborghini Gallardo LP560-4 is the successor of the most successful Lamborghini model of all time. Approximately 7100 Gallardo models have left the Sant'Agata Bolognese production plant since its launch in 2003. "The LP560-4 will consolidate this success story," states Stephan Winkelmann, President and CEO of Automobili Lamborghini. "It will outclass its predecessor in every aspect; its dynamics are distinctly breathtaking and its design sets new standards. With the introduction of the Lamborghini Gallardo LP560-4, we will consistently continue Lamborghini's growth strategy".

The powerful heart of the Lamborghini Gallardo LP560-4 is the new 5.2 litre V10 engine with an output of 560 PS (412 kW) at 8000 rpm. The increase of 40 PS compared with that of the previous Gallardo, and the approximate 20 kilogram reduction in weight, improves the power weight ratio to 2.5 kilograms per PS (hp) and thus enhances performance. The LP560-4 accelerates from 0-100 km/h in 3.7 seconds, its speed at 11.8 seconds is 200 km/h and its top speed lies at 325 km/h. At the same time the new, highly efficient engine enthrals its driver with its direct fuel injection system - "Iniezione Diretta Stratificata". Despite its clearly increased power, fuel consumption and CO2 emissions have been reduced by a staggering 18 per cent.

The engineers in the Sant'Agata-based Technical Department have also improved traction, handling and stability at high speeds. The redesigned four-wheel drive transmission, the new suspension and the optimised aerodynamics as well as the reduced weight and decreased friction between the components, all contribute to the overall improvements in the vehicle. Thus the Lamborghini Gallardo LP560-4 presents itself as a cutting edge super sports car also suitable for the race-track. The car is also surprisingly suited to long-distance driving and despite its extreme performance capabilities is easy to control whilst maintaining utmost stability.

The Style - Powerful elegance
A Lamborghini is and always will be a highly efficient athlete. Its extreme sensuality is based upon precision, performance and on spontaneous action. A Lamborghini's elegance is that of stark, purist strength. This DNA of the Lamborghini brand is being continuously developed by the Centro Stile in every new car. Thus the Lamborghini Gallardo LP560-4 displays the precise lines and clean surface edges in its distinctly minimalist design. Ornaments or embellishments of any form are alien to it.

Evolution of form systematically follows the demands of function: the newly designed front of the LP 560-4 squats deeply to the ground which contributes to its aerodynamic efficiency. The enlarged and clearly accentuated cooling intakes meet the demands of augmented engine power thus increasing the air circulation vital to a vehicle as powerful as this. The spoiler, positioned low between the air intakes, improves aerodynamic equilibrium at high speeds.

Characteristic LED - Daytime running light
The new headlights have a characteristic 'daytime' running light integrated beneath the Bi-Xenon lamps: 15 diodes (LED) have been positioned in a Y structure. The same motif appears again in the rear tail-lights. The stop and brake lights have been inspired by the Miura Concept, the Murciélago LP640 and the Reventón and display the Y form three times over.

The body
Weight is undesirable in a sports car and a lightweight model encourages the dynamics of such a vehicle. Aluminium is much lighter than sheet steel and this is why the Lamborghini Gallardo LP560-4 is produced with a body in a much lighter but nevertheless more stiff structure: the two-seater car measures 4.34 metres in length, 1.90 metres in width and a mere 1.16 metres in height. It weighs in dry at 1410 kilograms - which is, effectively, 20 kilograms less that that of the previous Gallardo.

The construction of the Lamborghini Gallardo LP560-4 utilises what is known as a 'spaceframe construction method'. Integrally moulded node elements and extruded parts create its frame, and sheet metal plates made out of aluminium have been neatly and securely integrated to form the body. The body is not only extremely light but also torsionally stiff and displays the highest safety characteristics. Thus the basis for the extraordinary handling characteristics of the LP560-4 is formed.

The Engine - Extreme power in every situation
The engine of the Lamborghini Gallardo LP560-4 is a completely new development. All that remains of the original V10 is the number of cylinders which, in this performance category, create a perfect and unique synthesis of torque, force of movement, sporty nimbleness, compact size and low weight.



Direct fuel injection improves efficient combustion
Transmission - Superior control four-wheel drive
Such extreme power must be brought onto the streets with extreme reliability. The driver of a Gallardo LP560-4 can thus rely on the four-wheel drive Viscous Traction (VT) system, with the '4' in the model name a reminder of this. Lamborghini already introduced this system with the Diablo VT in 1993 - and for good reason: four actuated wheels achieve more grip than two and permit acceleration earlier in the curve exit.
The protagonist in the transmission is the central viscous-coupling which requires no electronic control. In this special Lamborghini configuration, the driving torque is distributed between front and rear - generally with a 30:70 front to rear ratio and, within milliseconds, adapts to even the slightest variations in road conditions. A mechanical differential on the rear axle provides up to 45% limited slip and an electronic differential lock at the front complete the four-wheel drive system.

Superior traction and handling
Not only does the maximum traction take advantage of the permanent four-wheel drive system, but also the car's clearly superior handling. Each wheel can only transfer a certain amount of torque to the road. As the propulsion power is distributed onto all four wheels through the viscous traction system, more potential for directional control remains - and reserves in every situation distinguish a perfectly made sports car.
Despite all the engine thrust, changing gears in the Lamborghini Gallardo LP560-4 is one of the most exciting experiences of driving this vehicle. It is still the customer's personal preference as to whether he wishes to change gears manually through the exact 'gate' guides of the six-speed gearbox via the short gear stick, or whether he prefers to let his fingertips control the e.gear's paddle-shift system located behind the steering wheel: the latter solution becoming the preference of the majority of Lamborghini customers.

The gear change time reduced by 40 per cent
The automated e-gear transmission has been completely redesigned and improved in all aspects. The complete system has not only been reduced in weight, but the time employed to change gears has also been reduced by 40 per cent in "CORSA" mode. The driver may choose between five different driving and changing programs: in addition to the 'normal' mode, the Lamborghini Gallardo LP560-4 a SPORT programm with its even more rapid gear changing times and increased number of revolutions.
The CORSA program directs the engine to optimum acceleration. It permits a greater slip angle and also allows - with maximum safety - the full dynamism of the LP560-4 to be enjoyed even on a race-track. The 'Thrust Mode' ensures maximum acceleration from neutral while the angle of the throttle valve and the clutch are here optimally adjusted to one another. Finally the Automatic mode: here the engine changes gear in total independence and permits a particularly comfortable mode of driving.


The Suspension - High-tech parts with Lamborghini know-how
Even the Lamborghini Gallardo LP560-4's predecessor was one of the world's best super sports cars with regard to handling, precision and driving stability. However, the latest model provides an even more intense driving experience: the new suspension improves the car's handling, its driving comfort and its directional stability at high speeds.

The Lamborghini Gallardo LP560-4's space frame is uncompromisingly high tech. Its technical production was conceived from motor sport technologies. The double wishbones made out of aluminium with newly designed kinematics, while the springs and shock absorbers are tightly adjusted for grip.
The rear axle now has an additional track rod which further improves the excellent control of this super sports vehicle. Newly developed elements are the rubber-metal bearings - authentic high-tech parts - which clearly improve the special Lamborghini driving dynamics with well-chosen material combinations and cleverly defined assembly.

Precise, breathtakingly fast, whilst stable and free from surprises, the Lamborghini Gallardo LP560-4's dynamics assures a sensuous experience. The LP560-4's tyres (format 235/35 ZR 19 front and 295/30 ZR 19 rear) appear to bond with the asphalt. Specially developed Pirelli P-Zero series tyres are fitted: these have a particularly low roll resistance which also maintains tyre wear at a minimum without, of course, any reduction in their performance quality. At a speed of over 120 km/h an independently extended rear spoiler increases the downforce on the rear axle It acts in association with the specially formed underbody which directs the airstream under the car.

Optional Carbon Ceramic Brake system
The new braking system acts with brute force. At the front, eight 'Brembo specialist' cylinder callipers grasp the 365 mm diameter brake discs. At the rear, four cylinder callipers act on the 356 mm brake discs. In addition, the new disc ventilation system improves the stability in extreme situations. Optionally, discs made out of Carbon Ceramic are offered. At the front the CCB (Carbon Ceramic Brakes) discs measure 380mm in diameter and at the rear 356mm. They deliver much improved performance at a reduced weight. In total, the CCB braking system is lighter in weight that, at the wheel, improves driving dynamics and comfort.

The interior and trim
With the Lamborghini Gallardo LP560-4 Lamborghini provides its customers with a generous and sporty standard equipment package. Direct from the production line, a customer will find included in his vehicle passenger and lateral air-bags; a two-zone air-conditioning system with sun regulation; The Lamborghini Multimedia System including an USB connector; and sports seats with an electronically operated backrest. In addition to this, the interior trim includes fine leather and Bi-Xenon headlights with LED daytime running light. The car is supplied with new Apollo wheels as standard.

Technical data
* Type: 10 cylindres V90°, DOHC 4 valves,common-pin crankshaft
* Displacement: 5204 cc
* Compression ratio: 12,5 : 1
* Maximum power: 412 kW (560 ps) at 8000 rpm
* Maximum torque: 540 Nm 6500 rpm
Performance
* Top speed: 325 km/h
* Acceleration (0-100 km/h): 3,7 sec.
* Acceleration (0-200 km/h): 11,8 sec.
Dimensions
* Wheelbase: 2560 mm
* Overall legth: 4345 mm
* Overall width: 1900 mm
* Overall height: 1165 mm
Fuel Consumption with E-Gear
* Urban: 21 L/100 km
* Extra urban: 10 L/100 km
* Combined: 14 L/100 km
* Emission: Euro 4
* CO2: 327 g/km
Fuel Consumption with manual trasmission
* Urban: 22 L/100 km
* Extra urban: 10 L/100 km
* Combined: 14,7 L/100 km
* Emission: Euro 4
* CO2: 351 g/km
